Crowd Brushes

Tools for controlling how crowd elements are placed and configured in your scene. Brushes define instance properties, animation settings, and placement rules for creating diverse and natural-looking crowds.

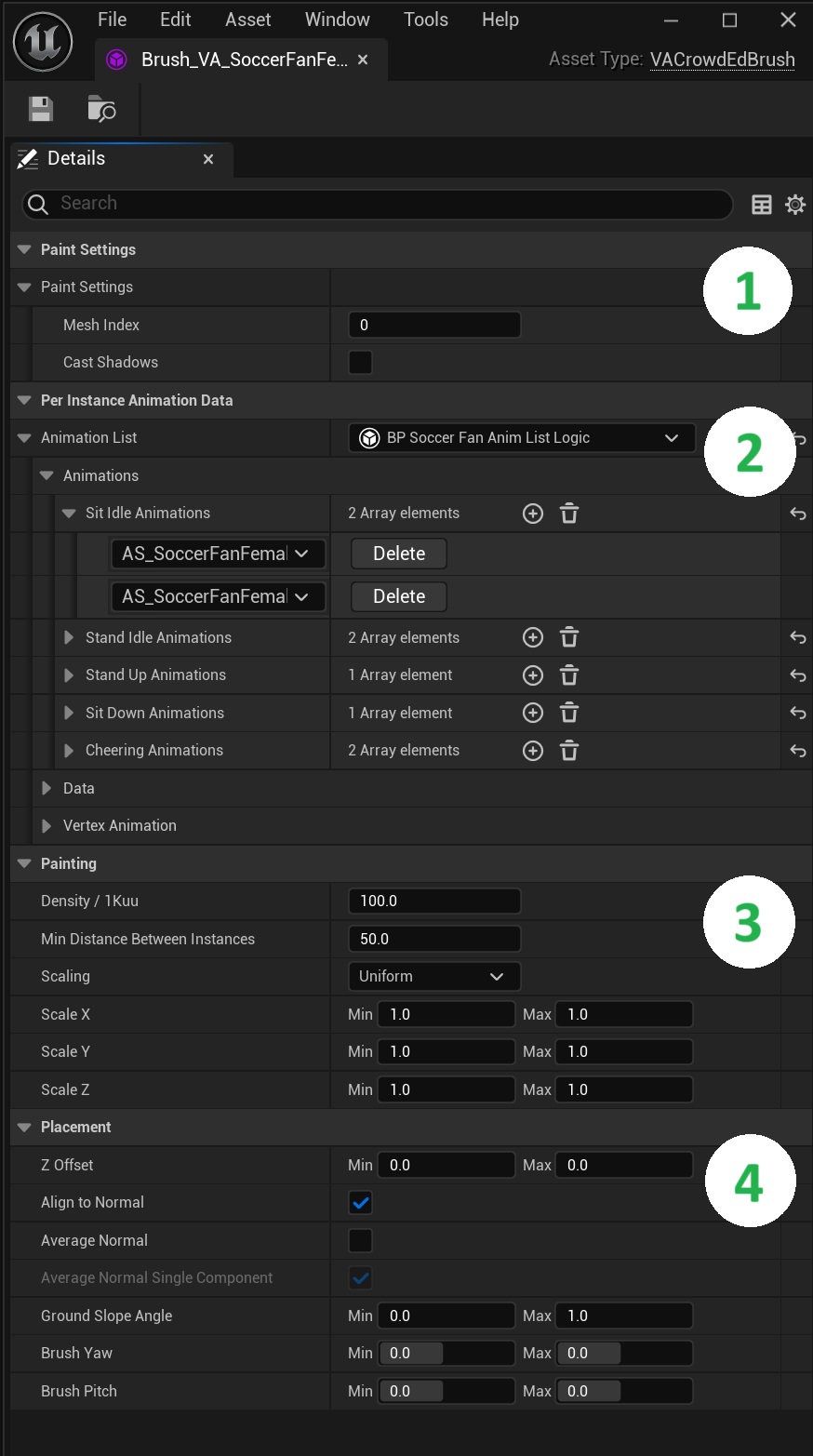

Brush Overview

1. Paint Settings

  • Mesh Index selection: If using Bone Animation types you can select which sub mesh to use here
  • Shadow casting options: Toggle shadow casting on the instances when they are placed in the level

2. Per Instance Animation Data

  • Animation List Logic: Select and edit your Animation Logic settings. For more information see Animation Logic

3. Painting Settings

  • Density (per 1Kuu): Controls the number of instances placed within a 10m² area
  • Min Distance Between Instances: Sets the minimum spacing required between newly placed instances within the paint brush area
  • Scaling Mode: Select from various scaling constraints Uniform, Free and Lock XY/XZ/YZ
  • Scale (X, Y, Z): Define minimum and maximum scale values for each axis - instances will be randomly scaled within these bounds

4. Placement Settings

  • Z Offset: Adjusts the vertical position of instances in the level. Use different Min/Max values to create random height variations
  • Align to Normal: Automatically orients instances to match the surface normal direction they are painted on (limited by Ground Slope Angle)
  • Average Normal: Smooths instance orientation by averaging nearby surface normals on uneven terrain
  • Average Normal Single Component: Limits normal averaging to a single component for more controlled orientation
  • Ground Slope Angle: Defines the minimum and maximum slope angles where instances can be painted and aligned with normals
  • Brush Yaw: Controls instance facing direction. Set different Min/Max values to create random rotations around the vertical axis
  • Brush Pitch: Controls forward/backward tilt angle. Set Min/Max bounds to randomize the pitch of placed instances

Creating Brushes

There are three ways to create a brush asset.

Direct Addition:

  • Click "+ Mesh/Brush Asset" in Crowd Editor
  • Select your VA Asset Collection
  • Choose where to save the new brush asset

Drag and Drop:

  • Drag VA Asset Collection to "Drop Your Assets Here" area
  • Choose where to save the new brush asset

Add Brush

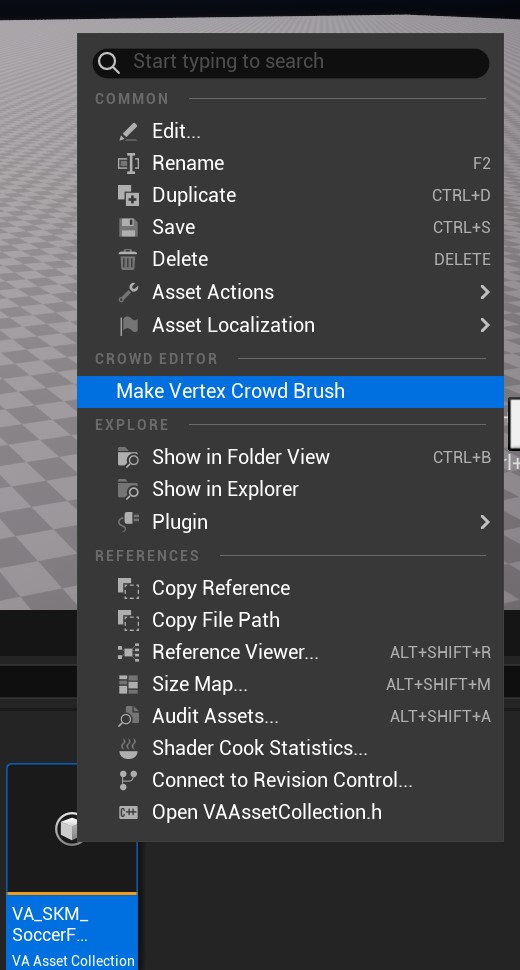

Right Click Menu:

  • Right click your VA Asset Collection in the content browser and choose Make Vertex Crowd Brush
  • Choose where to save the new brush asset

Create Brush
