Custom Animation Lists

Animation Lists allow you to create reusable animation behaviors that can be applied to any number of instances. By creating custom Animation List blueprints, you can define complex logic for how animations play, transition, and respond to events.

Creating a Custom Animation List

To create a custom Animation List:

  1. Create a new Blueprint class
  2. Select VAAnimationList as the parent class
  3. Name your blueprint (e.g., BP_SoccerFanAnimListLogic)
  4. Open the blueprint and override the events you need

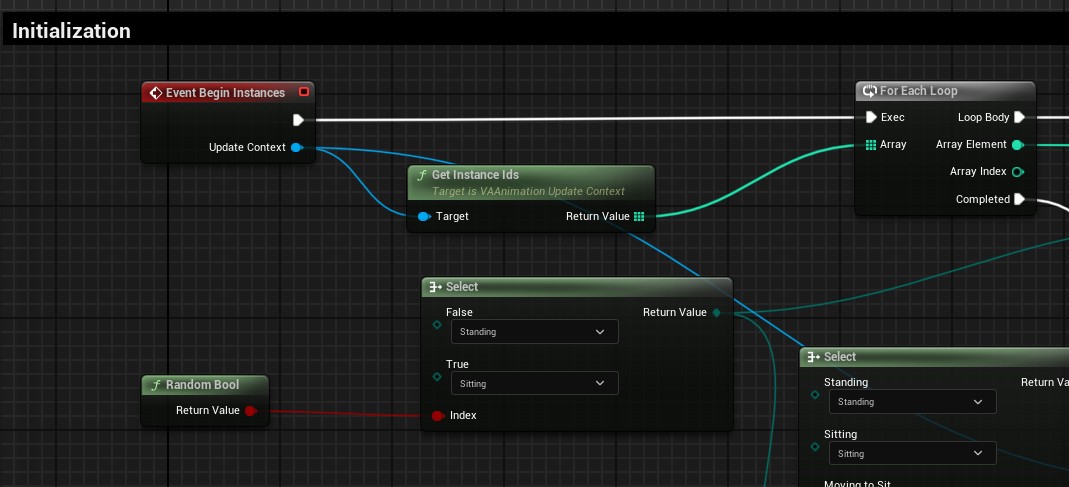

Begin Instances Event

Event Begin Instances

Called when instances are assigned to use this Animation List. Use this to initialize any custom logic or state.

Event End Instances

Called when instances stop using this Animation List. Use this for cleanup.

Event Update Instances

Called every frame for all active instances. Use this for time-based logic or checking transition conditions.

Event Animation Completed

Called when an animation finishes playing. Use this to choose the next animation or transition to a different behavior.

Event Custom Animation Event

Called when events are broadcast from the AVACrowds actor or your custom event system. Use this to respond to gameplay events.

Update Context: All events receive an Update Context parameter that provides functions to control animations (play, pause, set position, etc.) and query current animation state (which animation is playing, current position, play rate, etc.) for any instance.

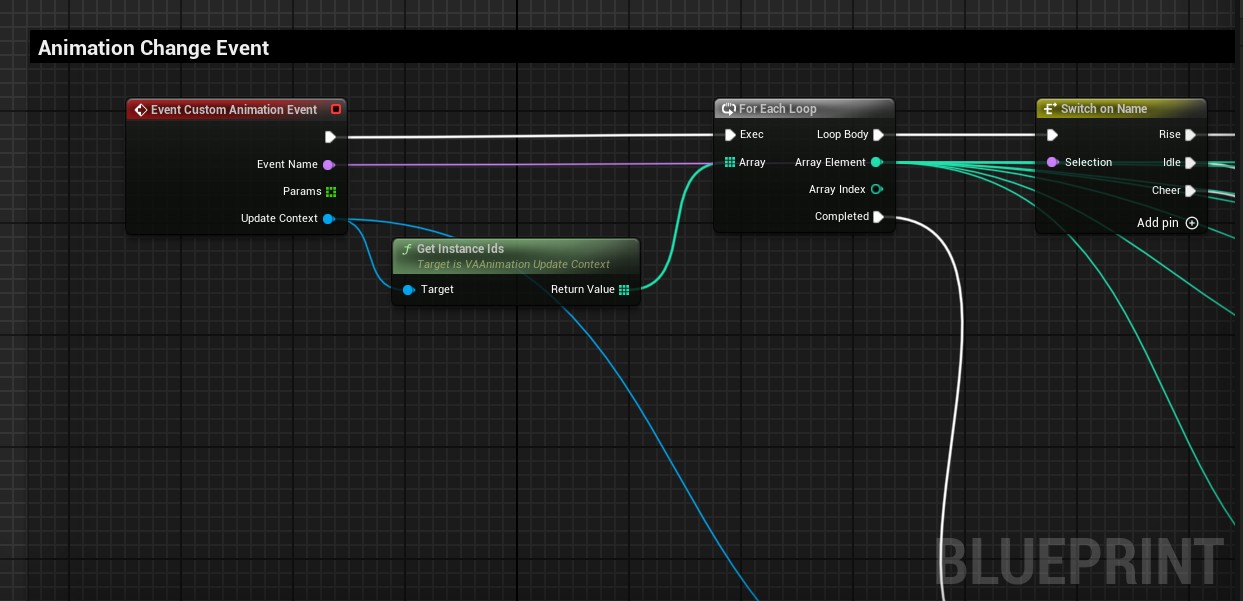

Animation List Event Override

Working with the Update Context

The Update Context is your primary tool for controlling animations from within your Animation List logic. It provides:

Animation Control Functions

  • PlayAnimation: Start a new animation for specific instances
  • PauseAnimation / ResumeAnimation: Pause and resume playback
  • SetAnimationPosition: Jump to a specific point in the animation
  • SetAnimationPlayRate: Change animation speed
  • SetAnimationLooping: Enable/disable looping
  • StopAnimation: Stop the current animation

Query Functions

  • GetInstanceIds: Get all instances using this list
  • GetAnimation: Get which animation is currently playing
  • GetPosition: Get current position in the animation (0-1)
  • GetPlayRate: Get current playback speed
  • GetPlaying: Check if animation is playing
  • GetLooping: Check if animation is looping

Example: For a detailed implementation example, see Plugins/VertexAnimation/Content/DemoMap/Blueprints/SoccerGame/BP_SoccerFanAnimListLogic.uasset

Instance Data System

Animation Lists can store custom data per instance, allowing each instance to maintain its own state and behavior parameters:

Custom Struct Data

Create custom struct types to store per-instance data that your Animation List logic can use:

  • State Information: Current behavior state, timers, counters
  • Randomization Data: Random seeds, variation parameters
  • Logic Parameters: Custom thresholds, triggers, or conditions
  • Behavior Memory: Previous actions, history, or context

Instance Data Functions

Use these helper functions to manage per-instance data:

  • SetInstanceAnimListData: Store custom struct data for a specific instance
  • GetInstanceAnimListData: Retrieve custom struct data from an instance
  • ClearInstanceAnimListData: Remove stored data from an instance

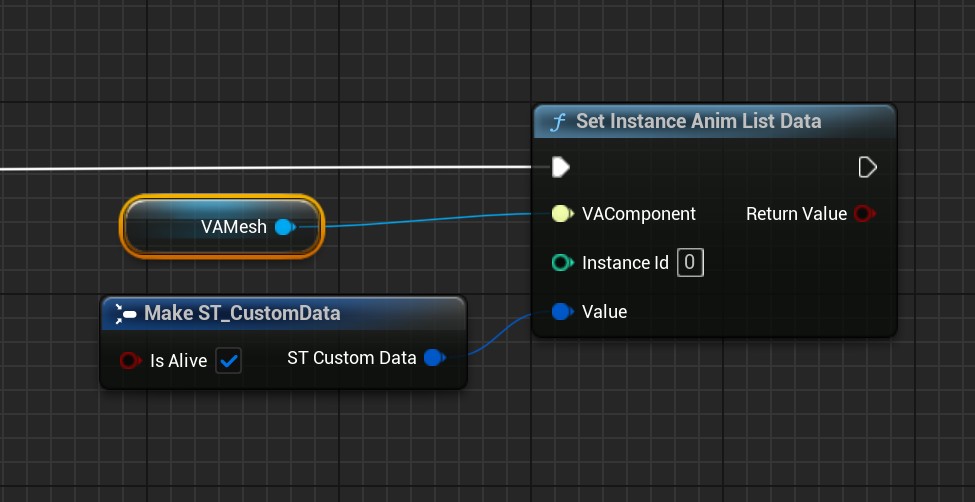

Set Instance Data

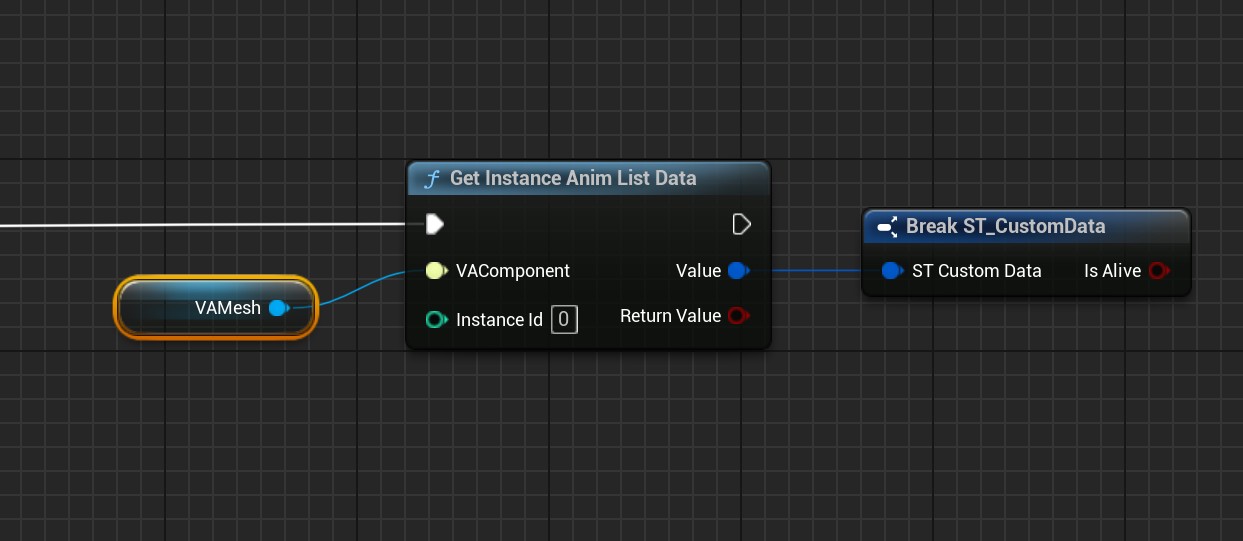

Get Instance Data

This system enables complex per-instance behaviors like state machines, conditional logic, and persistent animation behaviors that vary between instances.

Built-in Animation List Types

The plugin includes pre-built Animation List types you can use or extend:

Sequence List

Plays animations in the order they appear in the list. When the last animation completes, it loops back to the first.

Random List

Randomly selects animations from the list. You can configure weights and prevent the same animation from playing twice in a row.
